BDM3 Adapter for BDM and Xprog

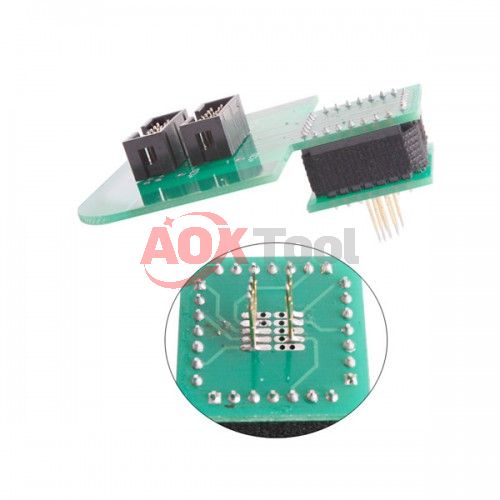

BDM3 is adapter with spring probes for ECUs with original BDM pinout pitch 1,27mm.





• Siemens SID803 (Volvo Diesel)

• Siemens SID201 (Land Rover, Jaguar)

• Siemens SID202 (Ford)

• Siemens SID203 (Jaguar)

• Siemens SID204 (Land Rover)

• Siemens SID206 (Ford)

• Siemens SIM226 (Mercedes)

• Siemens SIM90 (Chrysler/Dodge)

• Siemens MS45, MSS65, MSV70, MSS70 (BMW)

• Bosch MED9.7 (Mercedes)

• Marelli MJD (Fiat, Opel)

• and all others with standart 1.27mm BDM pinout
