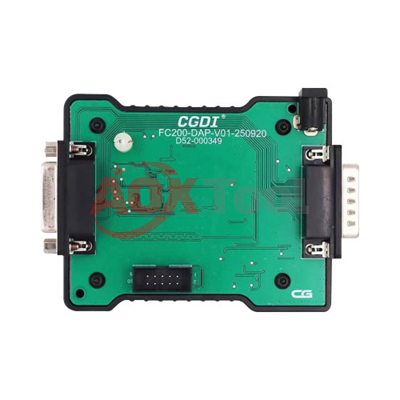

2026 New CG FC200 DAP Adapter for Toyota Denso and Delphi DCM7.1AP & DCM7.24
SKU
EC1006
Special Price
$176.00
was
$209.00
In stock
- CG FC200 DAP Adapter for Delphi and Toyota Denso
- Read Delphi 7.1AP, Delphi TC277TP, Toyota Denso 76F0038GD, 76F0070, 76F0085, 76F0039GD, 76F0040GD etc ECUs.
Categories: Default Category, New Products, FC200 ECU programmer
CG FC200 DAP Adapter for Delphi and Toyota Denso
CGDI FC200 DAP Adapter Mainly For Toyota's First-generation DENSO Series, Delphi's DCM7.1AP & DCM7.24 Chips.
CG FC200 Updates to V1.3.3.0 will require this DAP Aadpter.
Added BOOT mode ECUs (DAP adapter required)
Hyundai / Kia / Isuzu / Leyland: DCM7.1AP
JCB / BAIC: DCM7.24
Tata / Mahindra / JAC / Great Wall / Dongfeng: DCM7.1AP, DCM7.24
Toyota / Lexus:
DENSO 275036-xxx 76F0038AGD
DENSO 275136-xxx 76F0038AGD
DENSO 275036-xxx 76F0039GD
DENSO 175822-xxx 76F0038GD
DENSO 175822-xxx 76F0039AGD
DENSO 175822-xxx 76F0039GD
DENSO 175822-xxx 76F0040GD
DENSO 275036-xxx 76F0040GD
DENSO 275036-xxx 76F0070
DENSO 275036-xxx 76F0085
DENSO 275136-xxx 76F0085
DENSO 275036-xxx 76F0040AGD
DENSO 275922-xxx 76F0070
DENSO 275992-xxx 76F0070
Added PCR2.1 immobilizer data parsing, and SIMOS 8.6 cloning and immobilizer data parsing functions.
Added Hyundai/Kia BOOT mode ECUs:
SIMK41, SIMK42, SIMK43_AT, SIMK43_MT, SIMK62.
Added "The three monitors not ready" fix for MED17.5.21.
Added VIN modification and "The three monitors not ready" fix for MG7.9.8.
CG FC200 DAP Adapter Features:
Wide Compatibility with Mainstream Chips: The adapter primarily supports reading/writing and verification operations for key chips such as Toyota's first-generation DENSO series, as well as Delphi's DCM7.1AP and DCM7.24. Optimized communication protocols and stable hardware interfaces ensure more efficient and secure ECU data reading and flashing.
Online Firmware Updates: Simply connect to the internet to obtain and install the latest official firmware with one click.
Continuously Expanding Chip Support: The FC200-DAP is developed based on a scalable hardware platform and software architecture. We will continuously expand its supported chip models through ongoing firmware updates.
CG FC200 DAP Adapter Functions:
1. DAP Function: Primarily for reading and writing ECUs with TC2xx (Infineon) chips, only supports boot (opening cover) mode.
Main Models:
DCM7.1AP—Chinese cars, Hyundai, Kia, and Indian market models (Tata, Mahindra, Isuzu, etc.), can read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.
DCM7.24—Chinese Yuchai
Note: Adding ECUs for other models or ECUs with chips like TC297 is possible, but it's best to have the customer provide the ECU.
Notice:
① The correct vehicle model must be selected for operation;
② Diesel engines require a stable 12V power supply.
2. Toyota/Lexus ECU (first generation, early 2000s) NEC76F00xx chip Boot mode read/write, supports the following 8 chip types:
76F0038GD
76F0038AGD
76F0039GD
76F0039AGD
76F0040GD
76F0040AGD
76F0070
76F0085
Important Note:
Since Denso ECU housings come in many different versions, you must verify the chip model when using this function. If the chip is among the eight chips supported by the device, you can use the DAP adapter without needing to check the ECU cover model; only check if the chip matches. The model number on the FC200 menu corresponds to the silkscreened model number on the PCB board after opening the ECU cover. Select the corresponding wiring diagram from the menu based on this silkscreened model number.

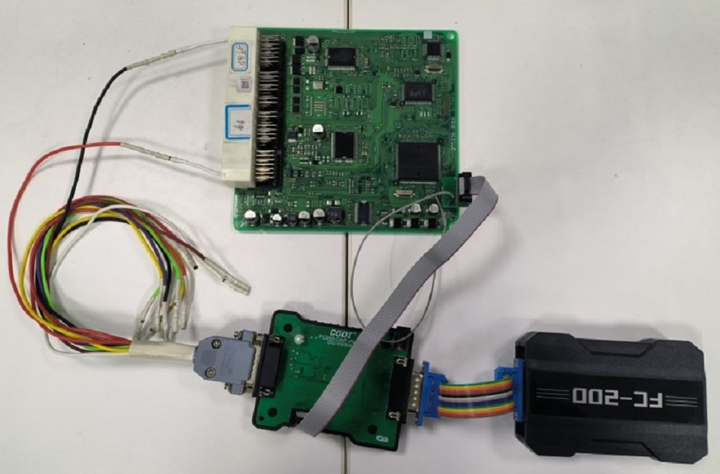

The Connection Diagrams:
1. Use pin headers for connection.
2. Use DAP cable harness for connection.
Product Specifications:
Operating Voltage: 12V
Operating Current: 1A
Operating Temperature: -20℃~+85℃
Storage Temperature: -40℃~+80℃
Operating Humidity: 30%RH~60%RH
Shell Material: ABS+PC30%
Package includes:
1pc x CGDI FC200 DAP Adapter
1pc x Pin header
1pc x Gray ribbon cable connector
1pc x FC200-DAP cable
1pc x 76F adapter board
1pc x DB15 two-row male-female connector
1pc x DIDC ribbon cable extension cable
CGDI FC200 DAP Adapter Mainly For Toyota's First-generation DENSO Series, Delphi's DCM7.1AP & DCM7.24 Chips.
CG FC200 Updates to V1.3.3.0 will require this DAP Aadpter.
Added BOOT mode ECUs (DAP adapter required)
Hyundai / Kia / Isuzu / Leyland: DCM7.1AP
JCB / BAIC: DCM7.24
Tata / Mahindra / JAC / Great Wall / Dongfeng: DCM7.1AP, DCM7.24
Toyota / Lexus:
DENSO 275036-xxx 76F0038AGD
DENSO 275136-xxx 76F0038AGD
DENSO 275036-xxx 76F0039GD
DENSO 175822-xxx 76F0038GD
DENSO 175822-xxx 76F0039AGD
DENSO 175822-xxx 76F0039GD
DENSO 175822-xxx 76F0040GD
DENSO 275036-xxx 76F0040GD
DENSO 275036-xxx 76F0070
DENSO 275036-xxx 76F0085
DENSO 275136-xxx 76F0085
DENSO 275036-xxx 76F0040AGD
DENSO 275922-xxx 76F0070
DENSO 275992-xxx 76F0070
Added PCR2.1 immobilizer data parsing, and SIMOS 8.6 cloning and immobilizer data parsing functions.
Added Hyundai/Kia BOOT mode ECUs:
SIMK41, SIMK42, SIMK43_AT, SIMK43_MT, SIMK62.
Added "The three monitors not ready" fix for MED17.5.21.
Added VIN modification and "The three monitors not ready" fix for MG7.9.8.
CG FC200 DAP Adapter Features:
Wide Compatibility with Mainstream Chips: The adapter primarily supports reading/writing and verification operations for key chips such as Toyota's first-generation DENSO series, as well as Delphi's DCM7.1AP and DCM7.24. Optimized communication protocols and stable hardware interfaces ensure more efficient and secure ECU data reading and flashing.
Online Firmware Updates: Simply connect to the internet to obtain and install the latest official firmware with one click.
Continuously Expanding Chip Support: The FC200-DAP is developed based on a scalable hardware platform and software architecture. We will continuously expand its supported chip models through ongoing firmware updates.
CG FC200 DAP Adapter Functions:
1. DAP Function: Primarily for reading and writing ECUs with TC2xx (Infineon) chips, only supports boot (opening cover) mode.
Main Models:
DCM7.1AP—Chinese cars, Hyundai, Kia, and Indian market models (Tata, Mahindra, Isuzu, etc.), can read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.
DCM7.24—Chinese Yuchai
Note: Adding ECUs for other models or ECUs with chips like TC297 is possible, but it's best to have the customer provide the ECU.
Notice:
① The correct vehicle model must be selected for operation;
② Diesel engines require a stable 12V power supply.
2. Toyota/Lexus ECU (first generation, early 2000s) NEC76F00xx chip Boot mode read/write, supports the following 8 chip types:
76F0038GD
76F0038AGD
76F0039GD
76F0039AGD
76F0040GD
76F0040AGD
76F0070
76F0085
Important Note:
Since Denso ECU housings come in many different versions, you must verify the chip model when using this function. If the chip is among the eight chips supported by the device, you can use the DAP adapter without needing to check the ECU cover model; only check if the chip matches. The model number on the FC200 menu corresponds to the silkscreened model number on the PCB board after opening the ECU cover. Select the corresponding wiring diagram from the menu based on this silkscreened model number.
The Connection Diagrams:
1. Use pin headers for connection.
2. Use DAP cable harness for connection.
Product Specifications:
Operating Voltage: 12V
Operating Current: 1A
Operating Temperature: -20℃~+85℃
Storage Temperature: -40℃~+80℃
Operating Humidity: 30%RH~60%RH
Shell Material: ABS+PC30%
Package includes:
1pc x CGDI FC200 DAP Adapter
1pc x Pin header
1pc x Gray ribbon cable connector
1pc x FC200-DAP cable
1pc x 76F adapter board
1pc x DB15 two-row male-female connector
1pc x DIDC ribbon cable extension cable
| Weight | 0.300000 |
|---|
