Original Xhorse VVDI PROG Programmer
Original Xhorse VVDI PROG Programmer
Software Version: 4.9.7
Firmware Version:2.1.0
Newest version v4.9.7 software download (2020-11-23)
VVDI Prog 4.9.7 Software Download
password:123456
TOP 6 reasons to get VVDI PROG Programmer
1. Built-in update software: Make VVDIProg firmwareupdatetimely.
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
VVDI PROG Language: English, French, Italian, Spanish, Arabic, Cezch, Polish, Portuguese, Russian, Turkish, Chinese
VVDI-Prog programmer can get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service.
Main Function:
Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series,
MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and
most eeprom chips etc .
Support chip data verify, checkblank function
Support data file compare function
Support R&W BMW N20, N55 ECU(show ISN directly)
Stable R&W MC9S12XE series chips(5M48H/1N35H/2M53J/3M25J etc.)
Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
Lots of connection diagram
VVDI Prog Update Log:
VVDIPROG latest software version V4.9.7 update
v4.9.7 (2020-11-23)
* This version DON't need update
firmware
+ Add VVDI PROG USER MUNUAL 4.9.7
version in Doc folder
+ Add TC21X-8F,
TC22X-12F,
TC22X-16F,
TC23X-16F,
TC23X-24F,
TC23X-32F options in
<2-MCU>->
+ Add XC2261N-24,
XC2263N-16,
XC2263N-24,
XC2263N-40,
XC2264N-16,
XC2264N-24,
XC2264N-40,
XC2265N-16,
XC2265N-24,
XC2265N-40,
XC2268N-40,
XC2285-56F,
XC2286-56F,
XC2287-56F,
XC2285-72F,
XC2286-72F,
XC2287-72F,
XC2285-96F,
XC2286-96F,
XC2287-96F,
XC2285M-56F,
XC2286M-56F,
XC2287M-56F,
XC2285M-72F,
XC2286M-72F,
XC2287M-72F,
XC2285M-104F,
XC2286M-104F,
XC2287M-104F,
XC2788X-104F,
XC2788X-136F,
XC2787X-136F,
XC2787X-200F,
XC2786X-96F,
XC2785X-104F,
XC2785X-72F,
XC2285M-104F,
XC2286M-104F,
XC2287M-104F,
XC2788X-104F,
XC2788X-136F,
XC2787X-136F,
XC2787X-200F,
XC2786X-96F,
XC2785X-104F,
XC2785X-72F options in
<2-MCU>->
+ Add HC908JK1,
HC908JK3,
HC908JL3,
HC908JK8,
HC908KX8 options in
<2-MCU>->
+ Add MC9S08QL4,
MC9S08QL8 options in
<2-MCU>->
+ Add D70F3735,
D70F3736,
D70F3737,
D70F3738,
D70F3792,
D70F3793,
D70F3841,
D70F3842 options in
<2-MCU>->
+ Add 5-SERIES-CHAIR-SWITCH-MODULE
option in <8-OTHERS->
+ Add S350 GATEWAY CONTROLLER
option in <8-OTHERS->
VVDIPROG latest software version V4.9.6 update
v4.9.6 (2020-10-10)
* This version DON't need update
firmware
+ Add VVDI PROG USER MUNUAL 4.9.6
version in Doc folder
+ Add Z700
option in <5-DASHBOARD->
+ Add 740(2013)CHASSIS-MOUDLE-HSR
option in <8-OTHERS->
+ Add ECOSPORT(2014)-BCM
option in <8-OTHERS->
+ Add EDGE(2017)-BCM
option in <8-OTHERS->
+ Add RAPTOR-F150(2011)-4WD
option in <8-OTHERS->
+ Add RAPTOR-F150(2011)-BCM
option in <8-OTHERS->
+ Add RAPTOR-F150(2011)-COMBINATION-SWITCH
option in <8-OTHERS->
+ Add RAPTOR-F150(2011)-OCM
option in <8-OTHERS->
+ Add H7(2014)-RIGHT-FRONT-DOOR-MOUDLE
option in <8-OTHERS->
VVDIPROG latest software version V4.9.5 update
* This version DON't need update firmware
* Fix RH86 bug
* Fix RH850 Series bugs
+ Add VVDI PROG USER MUNUAL 4.9.5 version in Doc folder
+ Add 24AA025, 24AA1025, 24AA1026 options in<1-EEPROM&FLASH->
+ Add FOTON(MC9S12G128) option in <4-IMMOBILIZER->
+ Add HC05X32(1D69J) option in <4-IMMOBILIZER->
+ Add 300C-46 option in <4-IMMOBILIZER->
+ Add S350-CONTROL-UNIT-PKE option in <4-IMMOBILIZER->
+ Add MAXUS-V80 option in <5-DASHBOARD->
+ Add CAPTU-AIRBAG option in <7-AIRBAG->
+ Add VOLVO-AIRBAG(2020) option in <7-AIRBAG->
+ Add C205-CHAIR-MODULE option in <8-OTHERS->
+ Add FAW-BCM(MPC5603BxLQ) option in <8-OTHERS->
+ Add BOYUE-PRO(2020)-PEPS-CONTROLLERoption in <8-OTHERS->
+ Add BOYUE-TIRE-PRESSURE-MODULE option in <8-OTHERS->
+ Add VV5-TAILGATE(2017) option in <8-OTHERS->
+ Add RFA-SECURED(SPC560B60L3) option in <8-OTHERS->
+ Add MAGOTAN-LEFT-FRONT-DOOR-MODULEoption in <8-OTHERS->
+ Add MAGOTAN-REVERSING-RADAR-MODULE option in <8-OTHERS->
VVDIPROGlatestsoftwareversionV4.9.4 update
v4.9.4(2020-05-26)
*ThisversionDON’tneedupdate
firmware
+AddVVDIPROGUSERMANUAL4.9.4
versioninDocfolder
+AddR7F701330optionin
<2-MCU->
+AddFENGJUN-7optionin
<5-DASHBOARD->
+AddTOYOTA-RAV4optionin
<5-DASHBOARD->
+AddBAOJUN-310/560AIRBAG
optionin<7-AIRBAG->
+AddT300AIRBAGoptionin
<7-AIRBAG->
+AddNEWVISIONAIRBAGoptionin
<7-AIRBAG->
+AddBAODIANAIRBAGoptionin
<7-AIRBAG->
+AddLYNKCO-AIRBAGoptionin
<7-AIRBAG->
+AddSRS-VW62optionin
<7-AIRBAG->
+AddAUDI-AC-CONTROLLER(R7F701548)
optionin<8-OTHERS->
+AddFRM-E-SERIES-XDT256
optionin<8-OTHERS->
+AddESCORT-BCMoptionin
<8-OTHERS->
+Add8th-SONATA-AC-CONTROLLER
optionin<8-OTHERS->
+AddSKODA-RADIO-STREAM
optionin<8-OTHERS->
VVDIPROGsoftwareversionV4.9.3 update
v4.9.3 (2020-04-29)
* This version DON't need update
firmware
* Fix 93Cxx ERASE BUGs
+ Add VVDI PROG USER MUNUAL 4.9.3
version in Doc folder
+ Add S2943 option
in<1-EEPROM&FLASH->
+ Add S2943(CLIP) option
in<1-EEPROM&FLASH->
+ Add EIZ-W906-9S12XDT384,
EIZ-W906-9S12XDP384(ADAPTER),
EIZ-W906-9S12XDP512,
EIZ-W906-9S12XDP512(ADAPTER)
option in <4-IMMOBILIZER->
+ Add CRAFTER-EZS-9S12XDT384,
CRAFTER-EZS-9S12XDT384(ADAPTER),
CRAFTER-EZS-9S12XDP512,
CRAFTER-EZS-9S12XDP512(ADAPTER)
option in <4-IMMOBILIZER->
+ Add ARRIZO3 option in
<5-DASHBOARD->
+ Add FIAT500 option in
<7-AIRBAG->
+ Add GLC260-ELECTRONIC-TAILGATE-UINT(2016),
V260-STEERING-COLUMN(2016) options in
<8-OTHERS->
+ Add BESTURN B90 CONTROL UNIT-PKE(2015)
option in <8-OTHERS->
+ Add CLIO-HFM-MODULE option in
<8-OTHERS->
+ Add PHAETON-REVERSE-RADAR-UINT(2012)
option in <8-OTHERS->
VVDIPROGsoftwareversionV4.9.2 update
v4.9.2 (2020-03-16)
*ThisversionDON’tneedupdate
firmware
+AddVVDIPROGUSERMANUAL4.9.2
versioninDocfolder
+AddSTM32F405RG,
STM32F405OG,
STM32F405VG,
STM32F405ZG,
STM32F405OE,
STM32F407VE,
STM32F407ZE,
STM32F407IE,
STM32F407IGoptionsin
<2-MCU>->
+AddFRM-E-SERIES-XEQ384-READ,
FRM-E-SERIES-XEQ384-WRITE,
FRM-F-SERIES-XEP100-READ,
FRM-F-SERIES-XEP100-WRITE,
FRM-F-SERIES-XET512-READ,
FRM-F-SERIES-XET512-WRITEoptions
in<8-OTHERS->
+AddENVISION—TAILGATE-COMPUTER
optionsin<8-OTHERS->
+AddPHAETON—TAILGATE-COMPUTER(2012)
optionsin<8-OTHERS->
VVDI Prog Cables and Function:
16Pin LockingSocket
Read the common EEPROOM, note: please insert the chip by following the below picture.
1.3.2 MCU Reflash Cable
Used to program MCU on board
1.3.3 ECU Reflash Cable
Used to program ECU
1.3.4 MC9S12 Reflash Cable
Used to program MC9S12 series chip
Supported chip list
EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Canerasethefirst32bytes |
| M35080 | R | Canerasethefirst32bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported in the future.
MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | CanautomaticallydetermineD-FLASH/EEEspace |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported, £ means the type will be supported in the future.
ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAGMEG17.5-TC1766 | £ | ||
| VAGMED17.5.1-TC1796 | £ | ||
| VAGMED17.5.2-TC1767 | £ | ||
| VAGMED17.5.5-TC1766 | £ | ||
| VAGMED17.5.20-TC1766 | £ | ||
| VAGEDC17CP14/CP20-TC1796 | £ | ||
| VAGEDC17CP04-TC1796 | £ | ||
| VAGEDC17C46-TC1767 | £ | ||
| VAGEDC17CP24-TC1796 | £ | ||
| VAGEDC17CP44-TC1797 | £ | ||
| VAGEDC17U01-TC1766 | £ | ||
| VAGEDC17U05-TC1796 | £ | ||
| VAG/PorscheSiemensContinentalSDI3- TC1796 |
£ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
How to Update VVDI-Prog Software & Firmware?
Software Update
You can get from our "Download" page or in description,we always list out download link.
Get in VVDI prog software:Click the "Upgrade" button enter the upgrade interface, show as following
Firware:
Please note: Firmware is necessary only when you are told to update. Press "Start Firmware Upgrade" button.

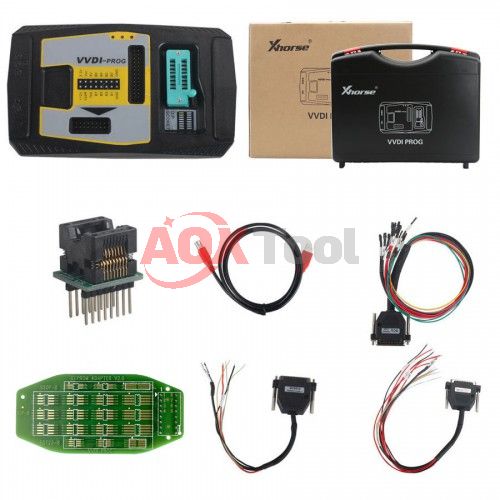

Package List:
1pc x Programmer multiplexer
1pc x Square USB cable
1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
VVDI Prog Optional Adapters
VVDIproghas several optional adapters,here is the list:
| Adapter Item No. | Adapter Name | Product Pic. |
| 1 | Benz EIS /EZS Adapter Kit Full Set 10pcs |  |
| 2 | TB28FXXX adapter |  |
| 3 | PCF79XX adapter |  |
| 4 | M35080/D80 adapter |  |
| 5 | EWS3 Adapter |  |
| 6 | EWS4 Adapter |  |
| 7 | EEPROM Clip adapter |  |
| 8 | TMS370 adapter |  |
| 9 | Land rover KVM Clip adapter |  |
| 10 | MC68HC05X32 Adapter |  |
| 11 | MC68HC05BX Adapter |  |
| 12 | PQFP80 Flash Adapter | Out of stock |
| 13 | AM29FxxxB (SOP44) |  |
| 14 | 35160DW Chip |  |
The new VVDI Prog Bosch ECU Adapter is used to read ISN from BMW ECU N20 N55 B38 etc. Without damaging the ECU shell.
The new BMW CAS4 adapter is used to read BMW 1N35H 5M48HBMW CAS4 No Removing Components
The new BMW FEM BDC 8-PIN adapter is used to read and write Immo 95128/95256 & dash 35080/35160 No Soldering
Land Rover KVM Adapter for VVDI Pro
BMW FRM Reading Cable for Xhorse VVDI Prog without Soldering
